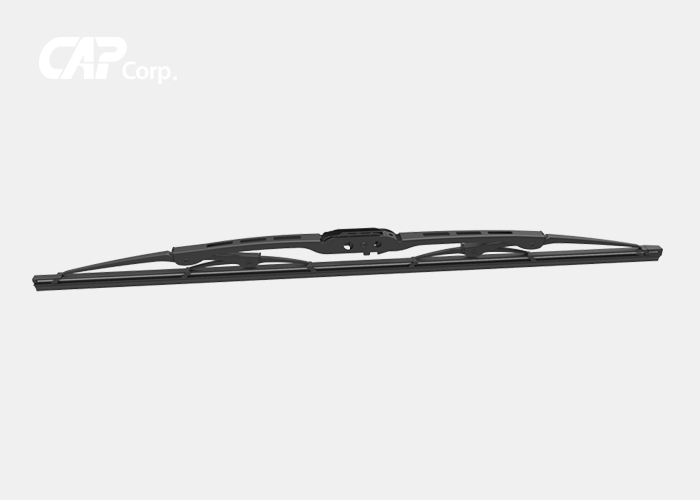

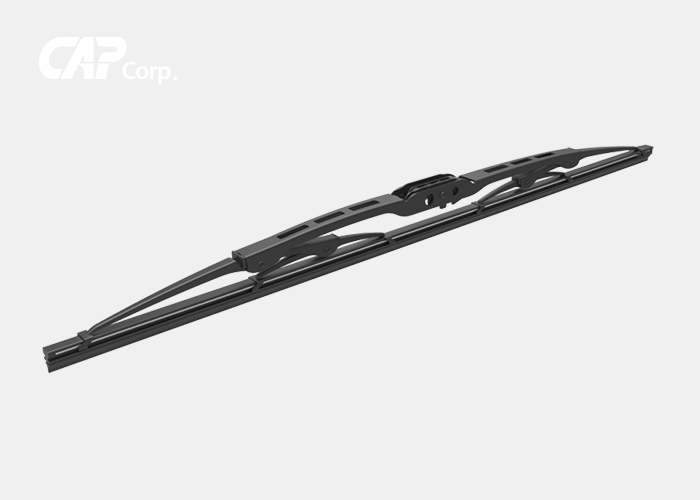

CR1
Rivet Type
Jointed by stainless steel rivet
Reduced chattering(OEM joint)
Minimized frictions at joints
Improved operational functions strong solid
structure using rivet joint
Durability for 300,000 cycles(OEM standard)
Inch(mm)
-
- 12
(300) - O
- 12
-
- 13
(325) - O
- 13
-
- 14
(350) - O
- 14
-
- 15
(375) - O
- 15
-
- 16
(400) - O
- 16
-
- 17
(425) - O
- 17
-
- 18
(450) - O
- 18
-
- 19
(475) - O
- 19
-
- 20
(500) - O
- 20
-
- 21
(525) - O
- 21
-
- 22
(550) - O
- 22
-
- 23
(575) - O
- 23
-
- 24
(600) - O
- 24
-
- 25
(625) - O
- 25
-
- 26
(650) - O
- 26
-
- 27
(675) - X
- 27
-
- 28
(700) - X
- 28
Installation image of Arm
Prior to installation

Main adapter
After installation

-9x3 Arm

-9x4 Arm

Bayonet

Pin in Arm 3/16

Pin in Arm 1/4
